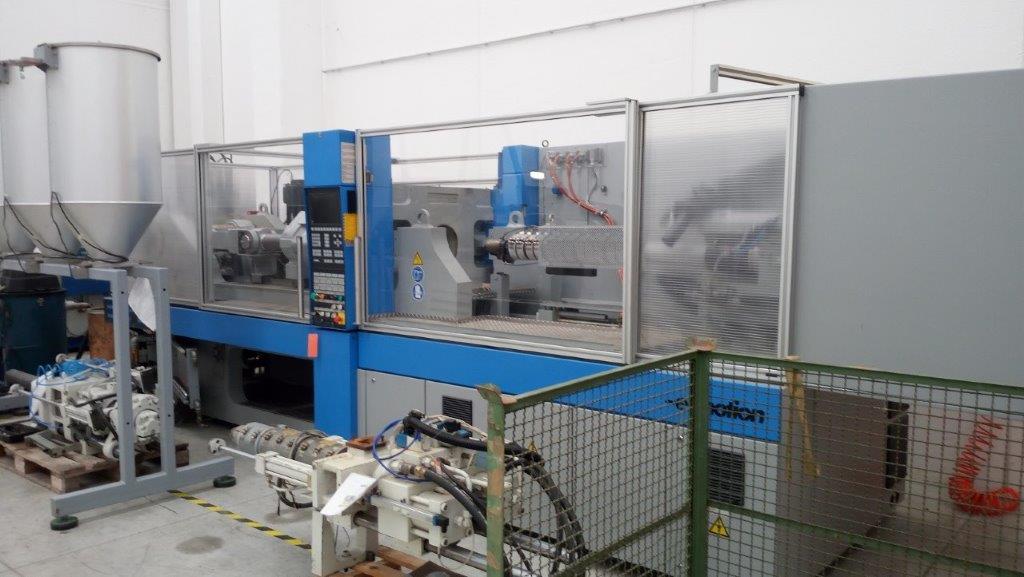

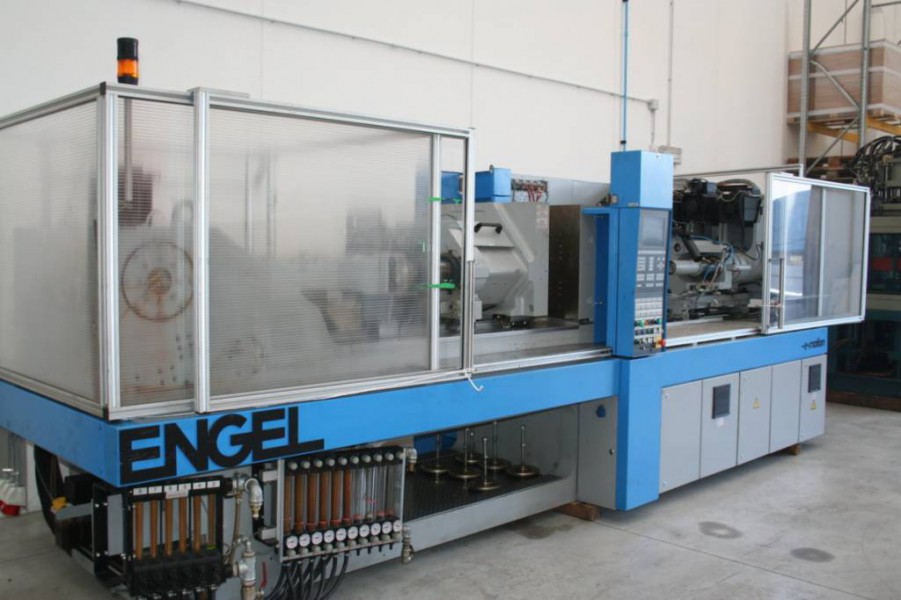

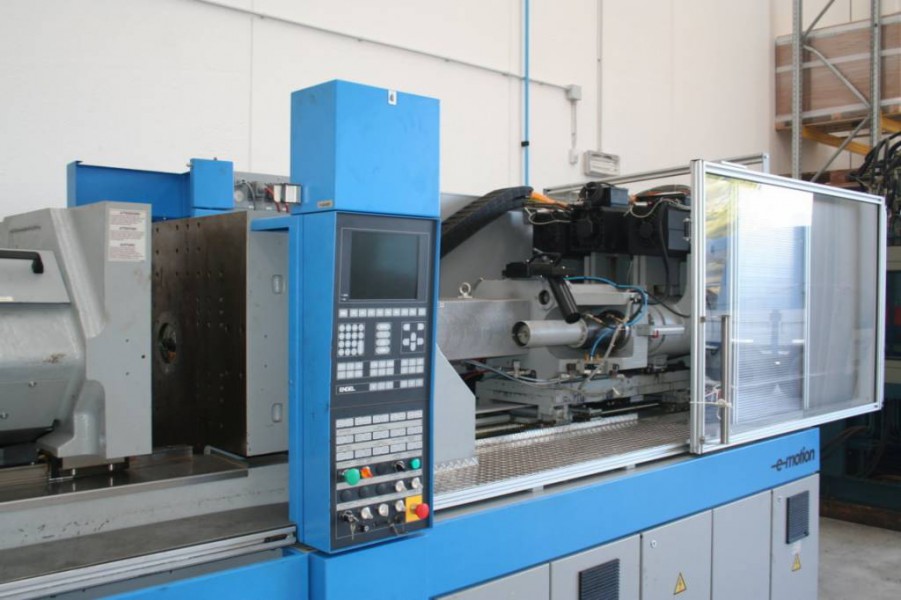

ENGEL E-MOTION 940/180 -CE-

ELECTRIC INJECTION PRESS

Closing force: 1800 Kn
Opening stroke: 450 mm
Min / max mold thickness: 200/550 mm
Distance between the plates: 1000 mm
Mold holder plate (LxH): 950 x 750 mm
Extraction: Electric
Max extraction stroke: 150 mm
Extraction force: 37 Kn

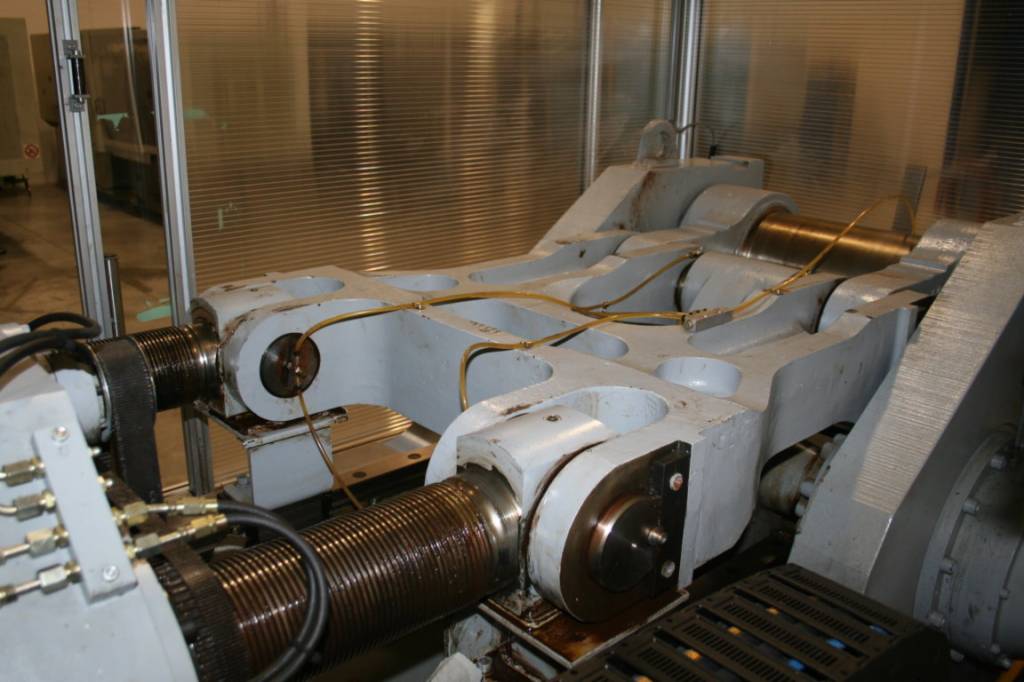

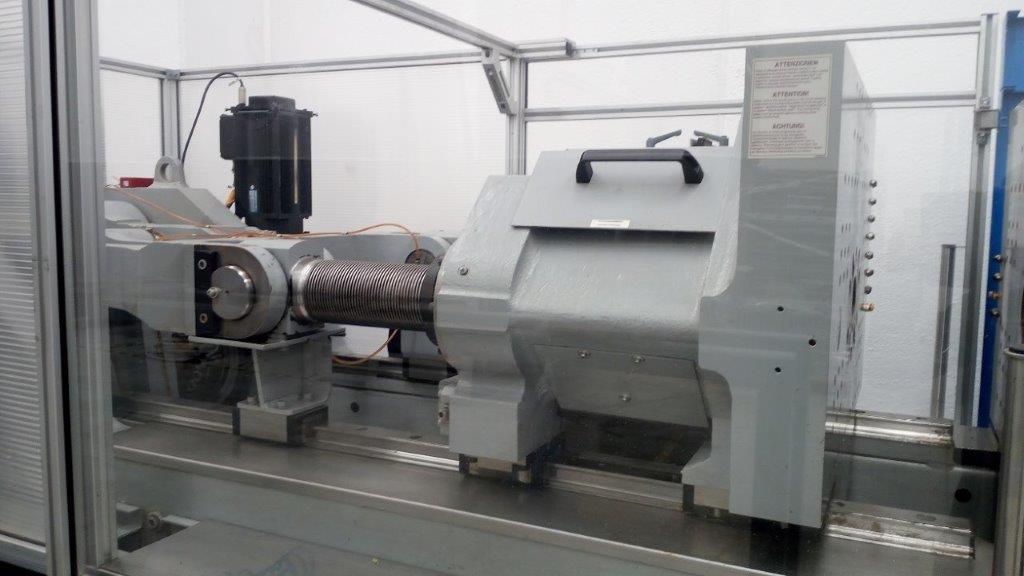

Closing system: Electric knee brace
Dry running time: 2 s./mm

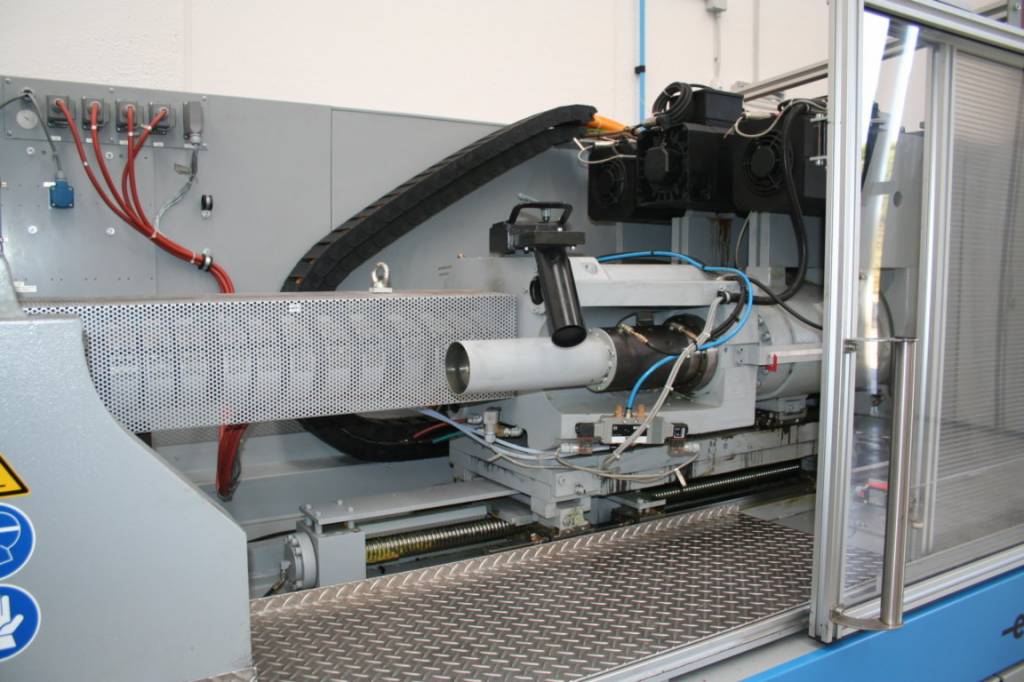

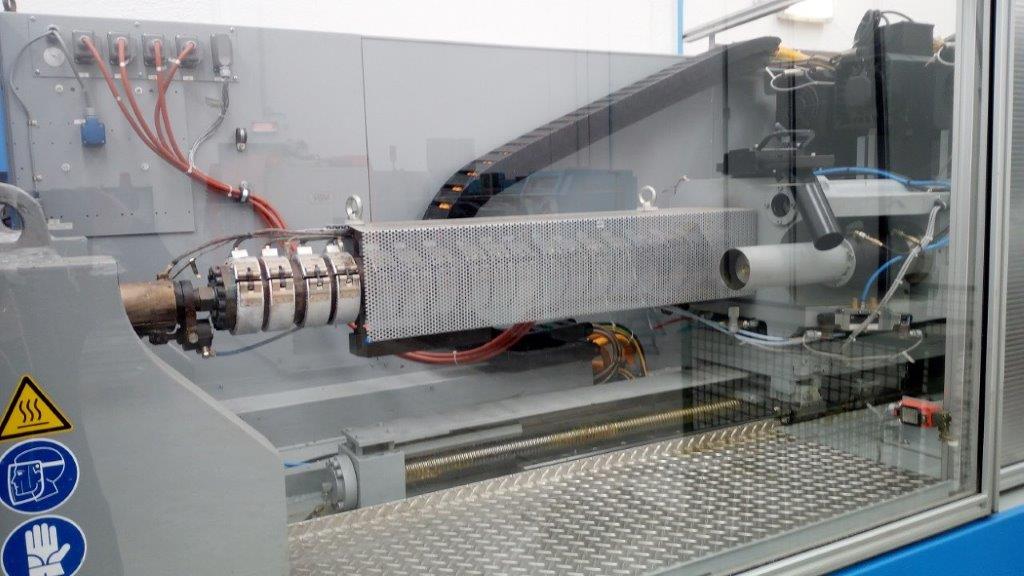

INJECTION GROUP TYPE 1: Electric
Injection unit: 940 H
Screw diameter: 55 mm
Screw length L / D: 24 L / D
Max volume: 475 cm3
Injection flow rate: 617 max cm3 / s
Specific injection pressure: 1550 bar
Weight: 16300 Kg
Overall dimensions: 6619x1900x2247 mm

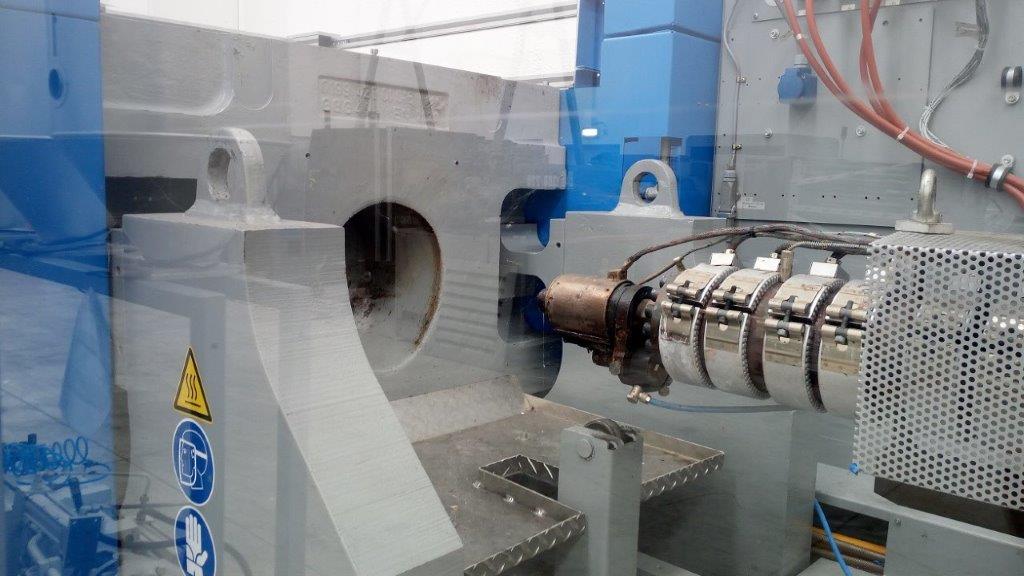

Accessories: hot chambers, air jack, 2 air blowers, oil jack arrangement, pneumatic shutter nozzle, 12 flow meters

Year: 2004

Make: ENGEL
