ISLAND OF PRODUCTION COMPLETE WITH PRESS MAICO SPRINT L 350 IM

+ foto

Description

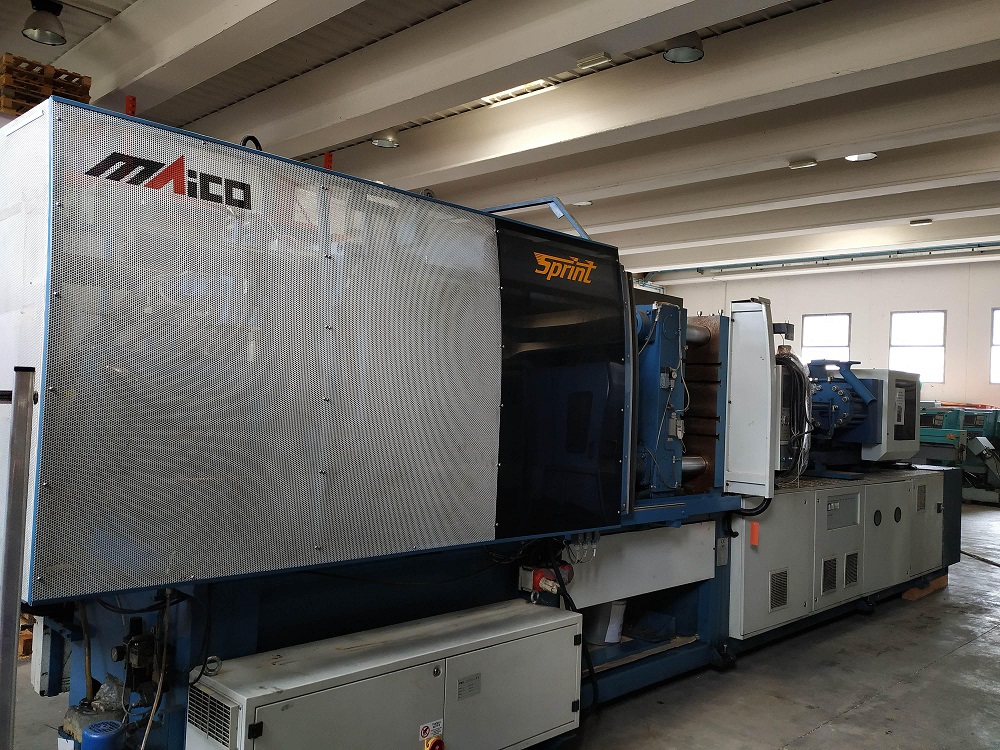

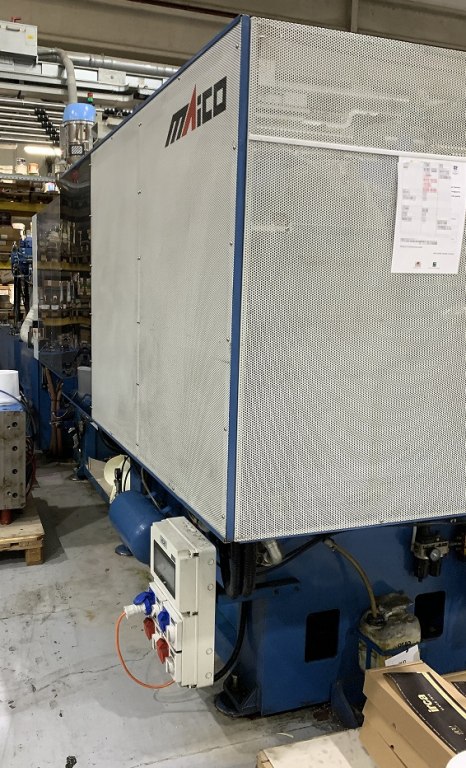

ISLAND OF PRODUCTION COMPLETE WITH PRESS MAICO SPRINT L 350 IM -CE- AND IROBI SPECIAL EQUIPMENT IML

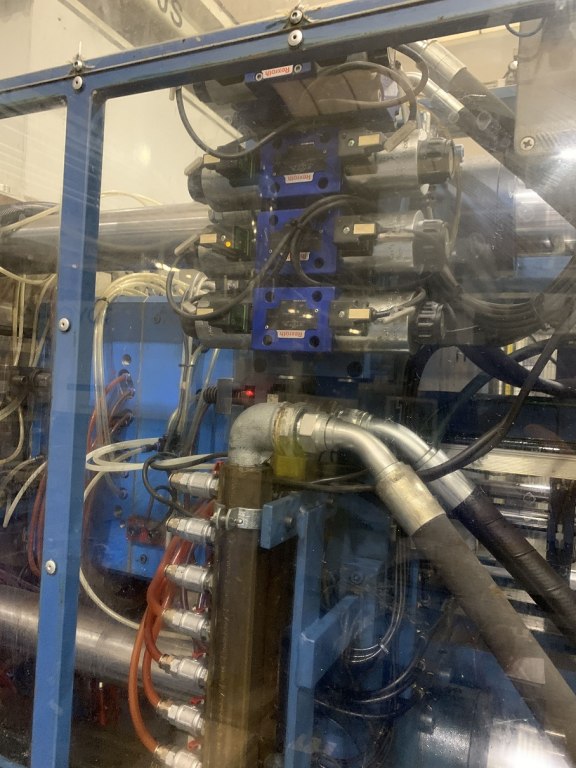

HYDRAULIC INJECTION PRESS AND AUTOMATIONS

Closing force: 3500 Kn
Opening stroke: 900 mm
Min / max mold thickness: 350/900 mm
Distance between the plates: 1800 mm
Distance between columns: 710 x 650 mm
Mold holder plate (LxH): 1060 x 1000 mm
Max extraction stroke: 250 mm
Extraction force: 40 Kn
Closing system: Hydraulic knee brace
Pump motor: 101 Kw
Maximum installed power: 145 Kw
Control Type: Moog
Oil tank: 680 Lt Lamination engine: electric
Injection unit: 3450 H
Screw diameter: 75 mm
Screw length L / D: 25 L / D
Max volume: 1678 cm3
Max injectable weight: 1577 g / ps
Max injection pressure: 2050 bar
Accessories: Jack core, Blower area, Robot interface, shutter nozzle

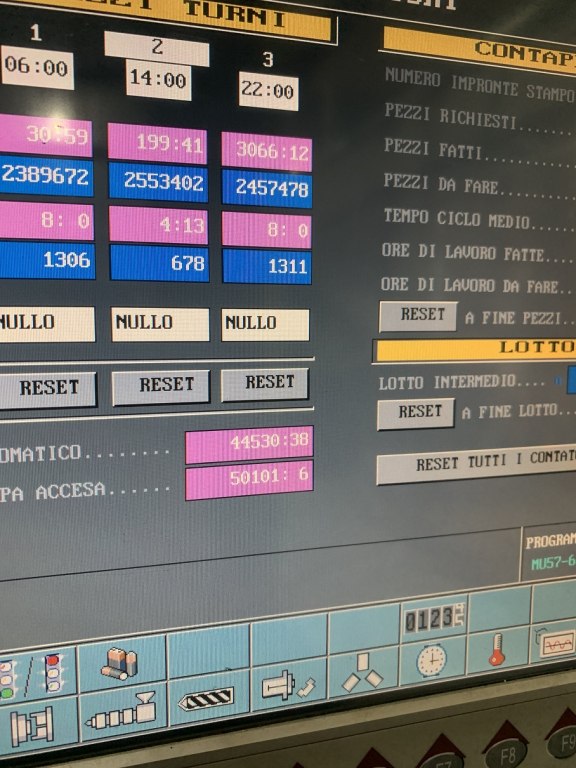

HOURS WORKED: 45.000
Weight: 18.400 KG
Overall dimensions: 8,400 x 1,800 x 2,450 mm

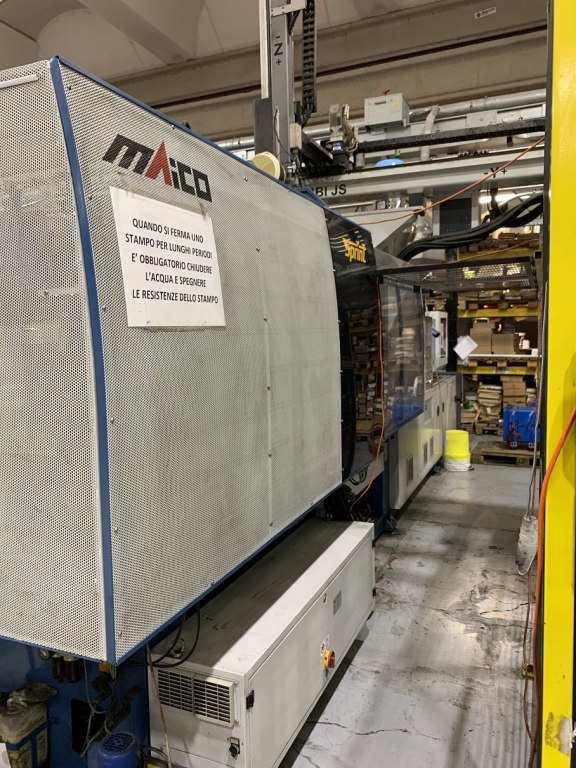

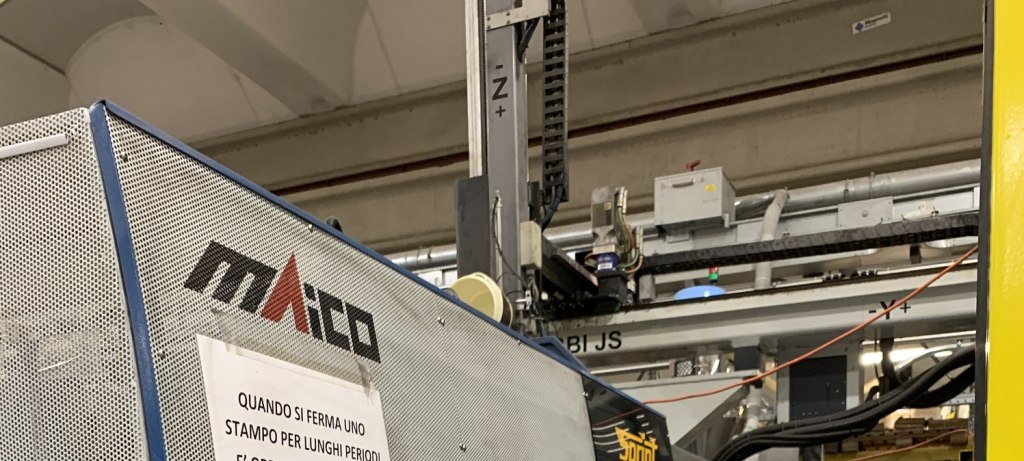

Automation for the application of IML labels on truncated cone containers consisting of: 2 IROBI robots, label loading bench, conveyor belt for the evacuation of finished pieces, and perimetral protections (all CE) PRESS ROBOT: IROBI 115 JS 3 axes
Y axis: 2500 mm
X axis: 1000 mm
Z axis: 1050 mm
Maximum load: Kg. 15
Exhaust tilting axis 0-90: No
Rotation axis 0-270: No
Vacum circuits: Yes
Gripper control circuits: Yes
Weight: Kg. 600
PALLETIZER ROBOT: IROBI 80 JS
Y axis: 2000 mm
X axis: 800 mm
Z axis: telescopic 1650 mm
Maximum load: Kg. 8
Exhaust tilting axis 0-90: No
Rotation axis 0-270: Yes pneumatic
Vacum circuits: Yes
Gripper control circuits: Yes
Weight: Kg. 800
