LIFT SYSTEM Hydraulic Grasshopper - 450 Ton

The lot includes:

Serial number: 34PT5400LT; Range: 450 T; Power: electric Location: Cassino

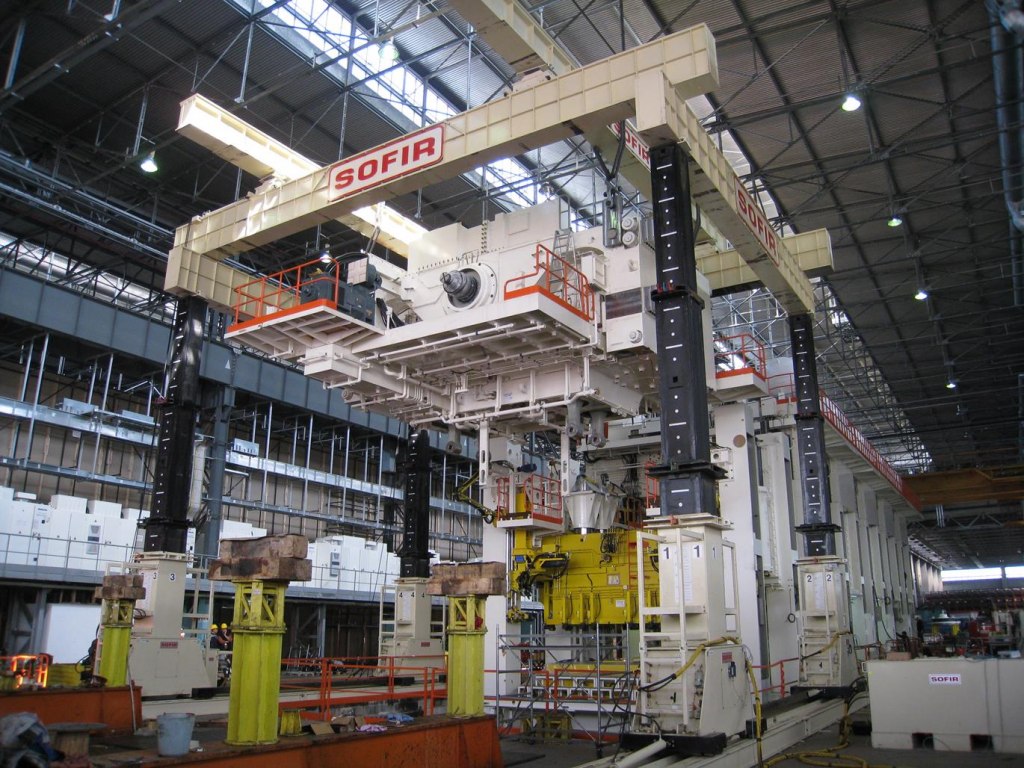

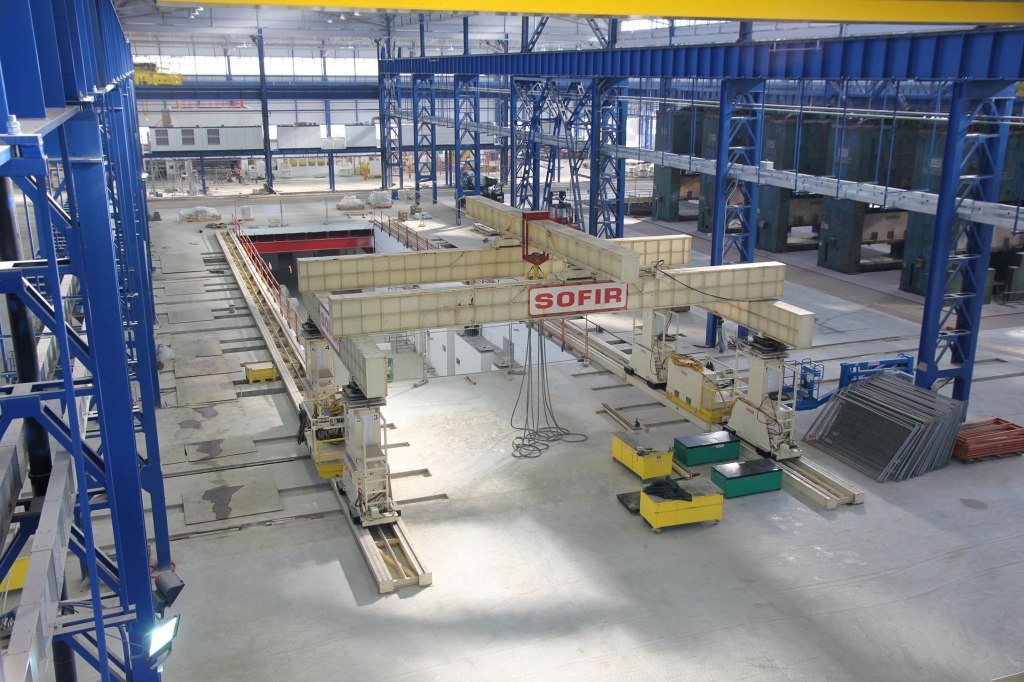

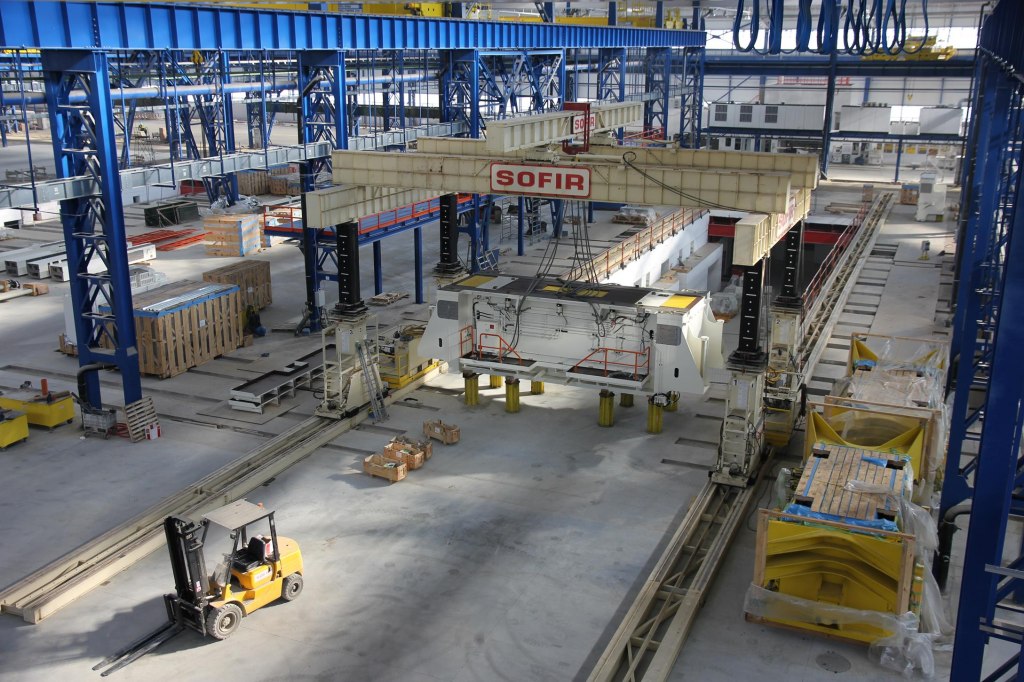

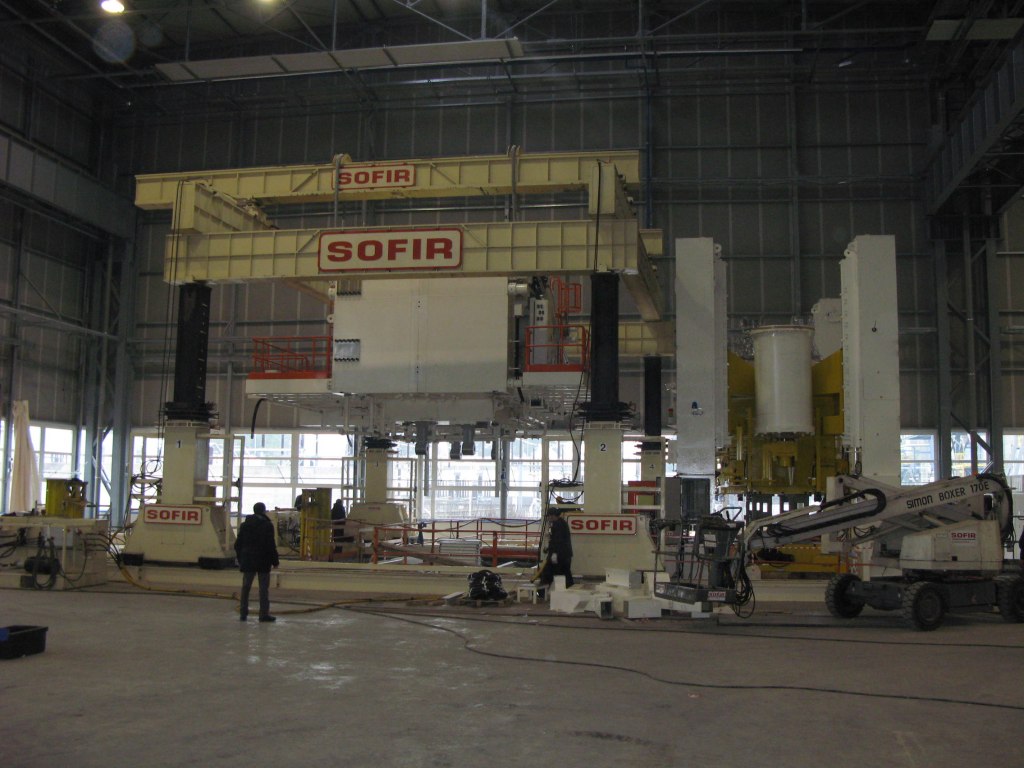

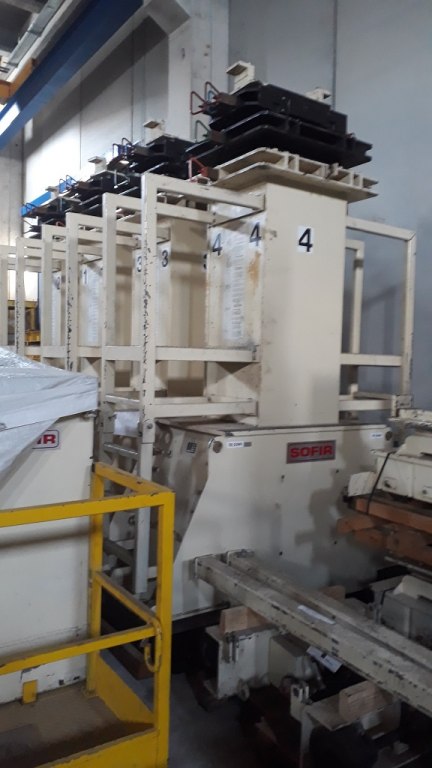

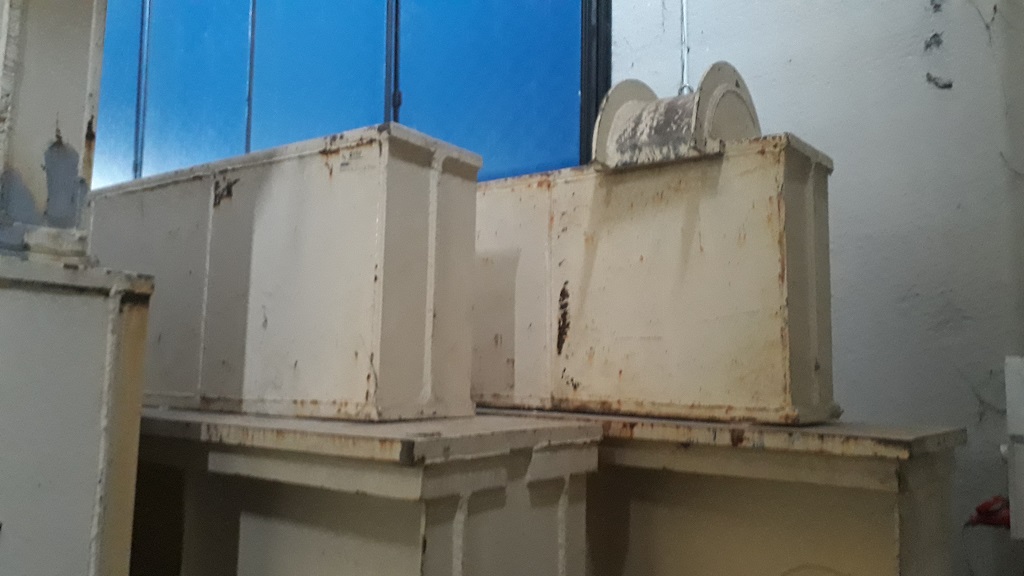

n. 4 Hydraulic lifting towers with vertical travel of 11 mt. Complete with metal carpentry bases equipped with translation on wheels controlled by hydraulic motors. Dimensions: 3000x2350x1220 per single tower. Weight: 6.8 Ton. X 4 = 27.2 Ton

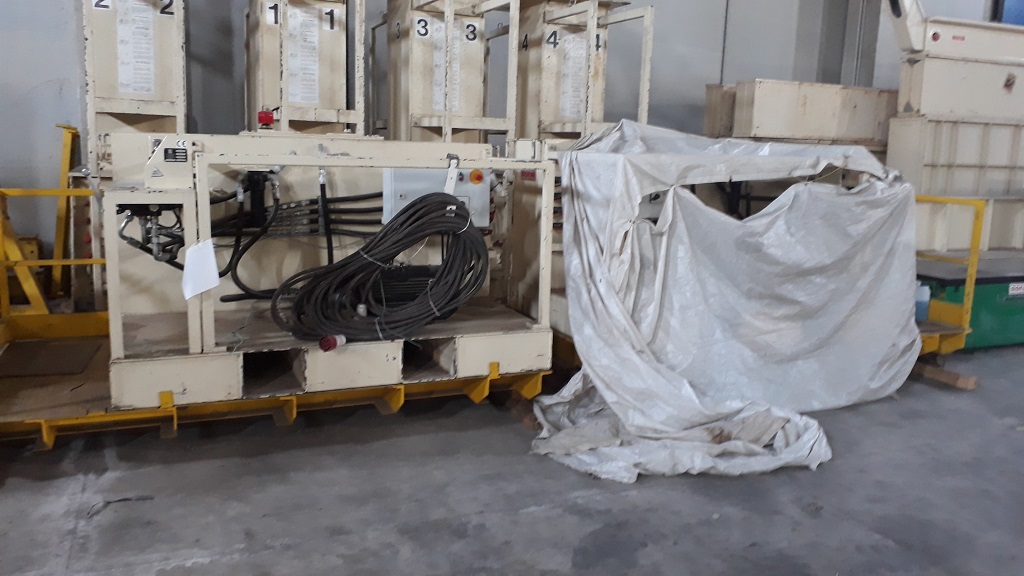

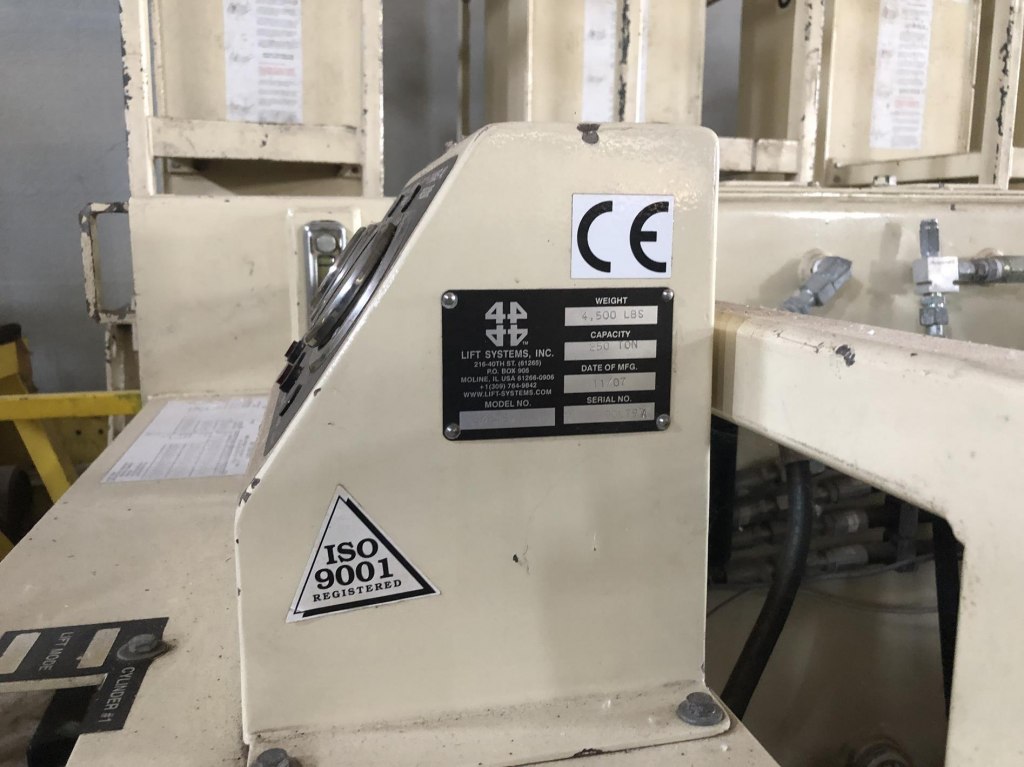

N. 2 Hydraulic unit for lifting and handling Grasshopper. Dim: 1700x2900x1560 for single control unit. Weight: 1 Ton. X 2 = 2 Ton

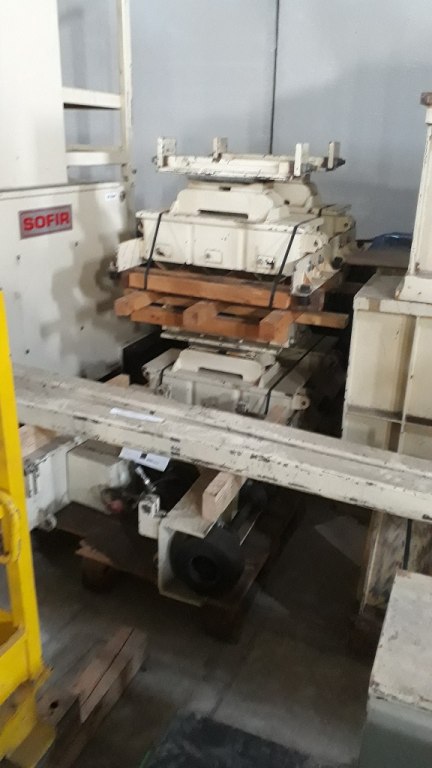

N. 2 trolleys with hydraulic motors for movement on rails. Dim: 1200X800X144 Deposited on a pallet. Weight: 0.5 Ton. X 2 = 1 Ton
N. 2 telescopic beams connecting grasshopper motors. Dim: From 1500 to 3000. Weight: 0.5 q. X 2 = 1 q.
N. 4 trolleys sliding lifting beams. Dim: 1200X800X144 Deposited on two pallets. Weight: 0.5 Ton. X 4 = 2 Ton

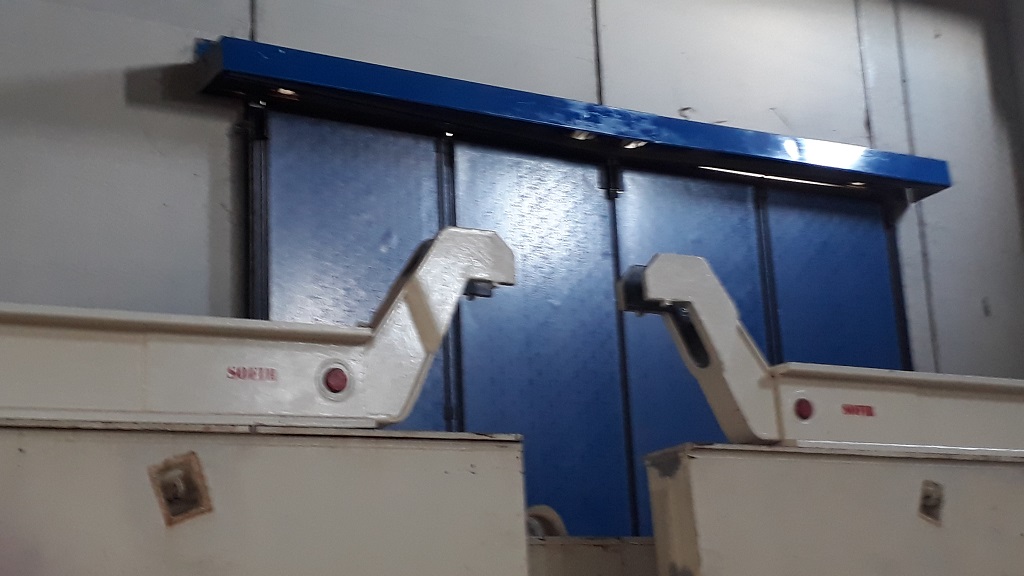

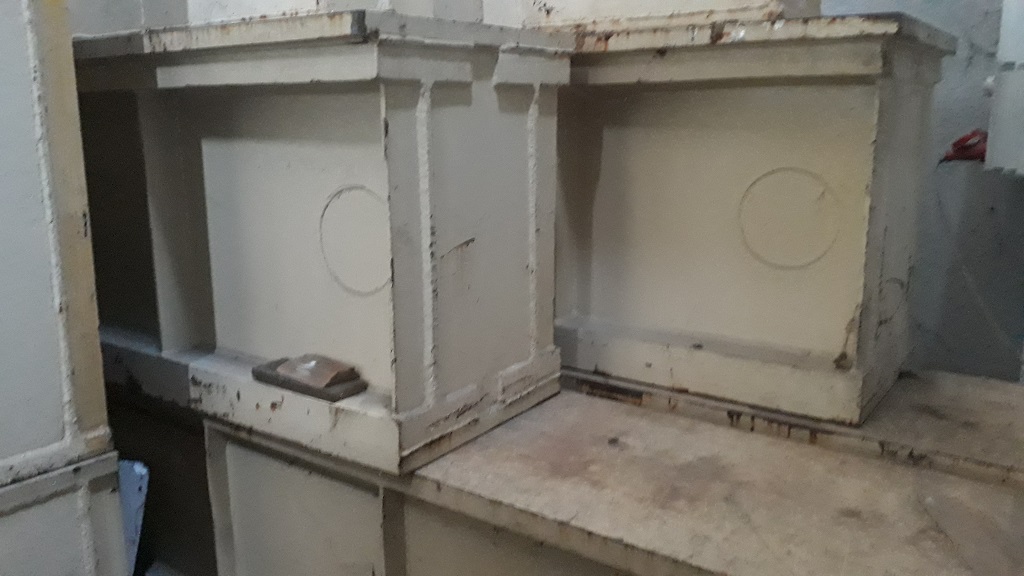

n. 4 Saddles for lifting steel cables. Dim: 750X290. Weight: 0.25 Ton. X 4 = 1 Ton
N. 4 Saddles for lifting steel cables. Dim: 530X240. Weight: 0.20 Ton. X 4 = 0.8 Ton

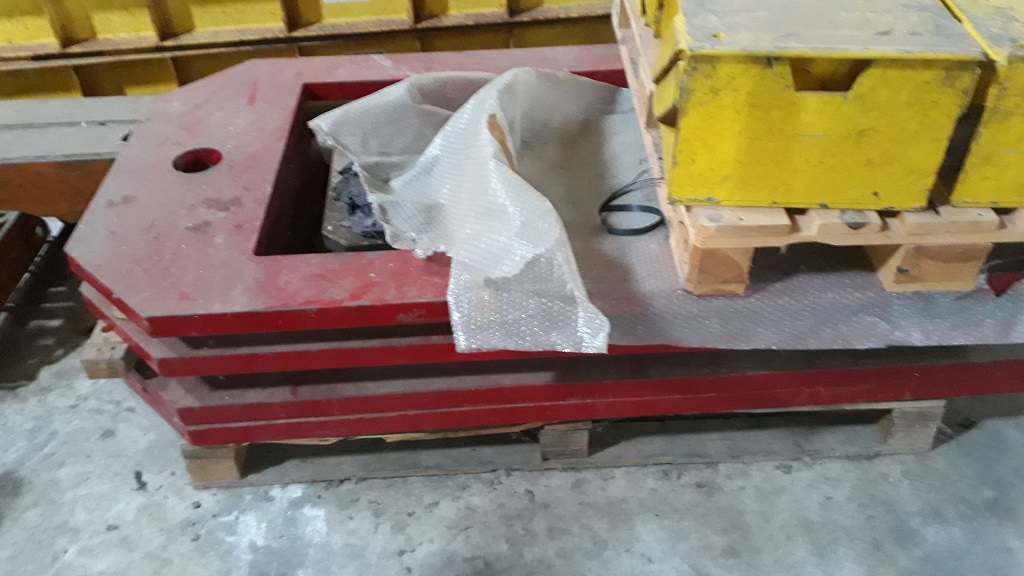

N. 4 Link from 125 ton each
No. 2 Link 75 ton each Dim: 1.600x740x40 mm

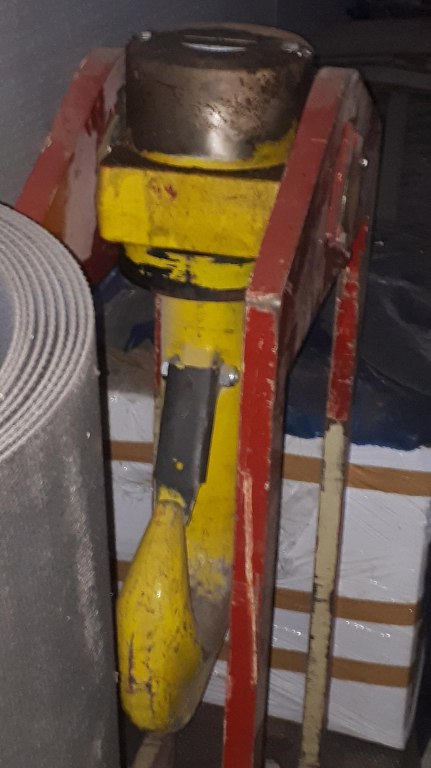

N. 1 Swivel hook 120 ton.

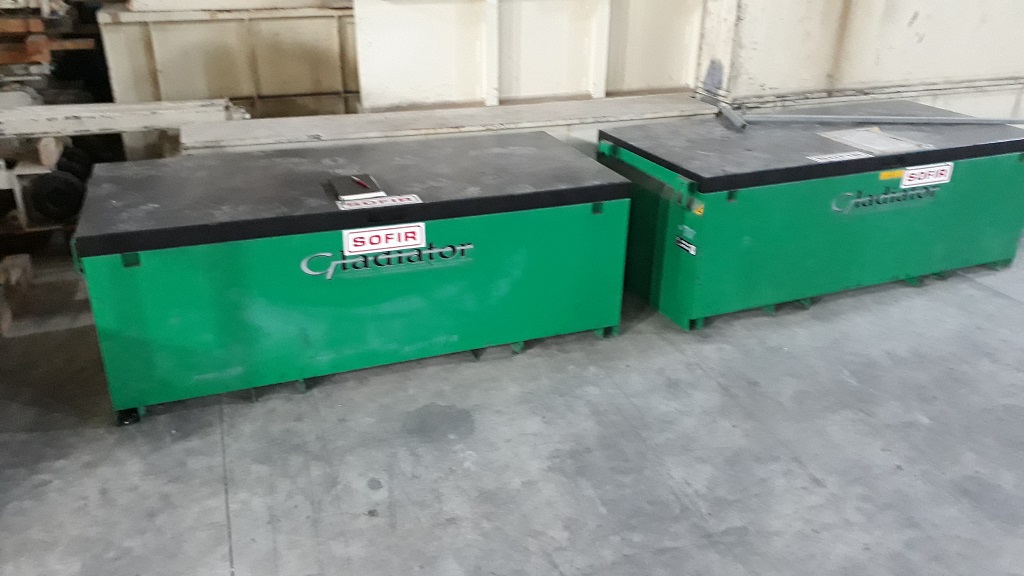

N. 2 boxes for various equipment, electric cables, pipes. Size: 1850X810X650. Weight: 0.5 Ton. X 2 = 1 Ton

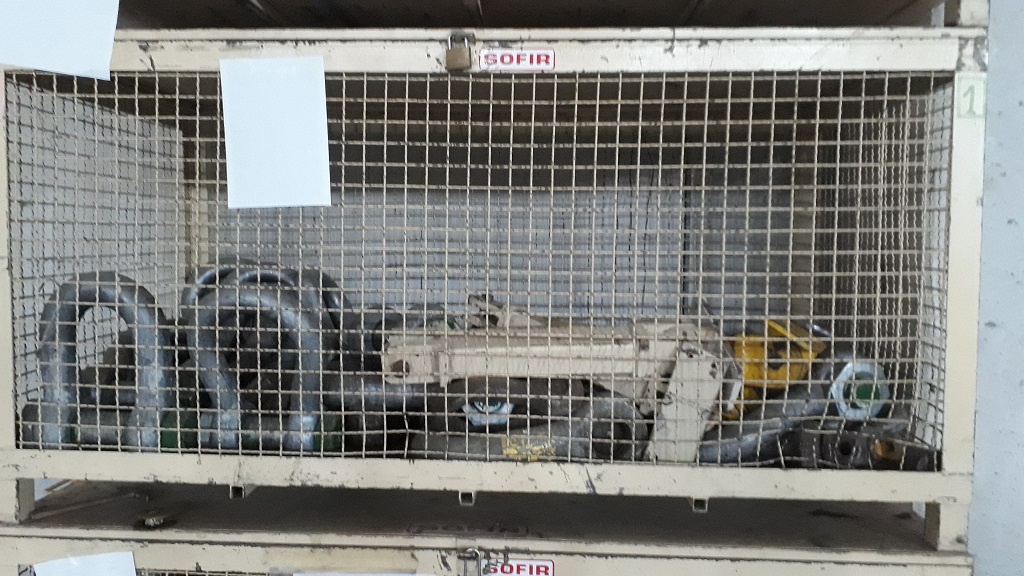

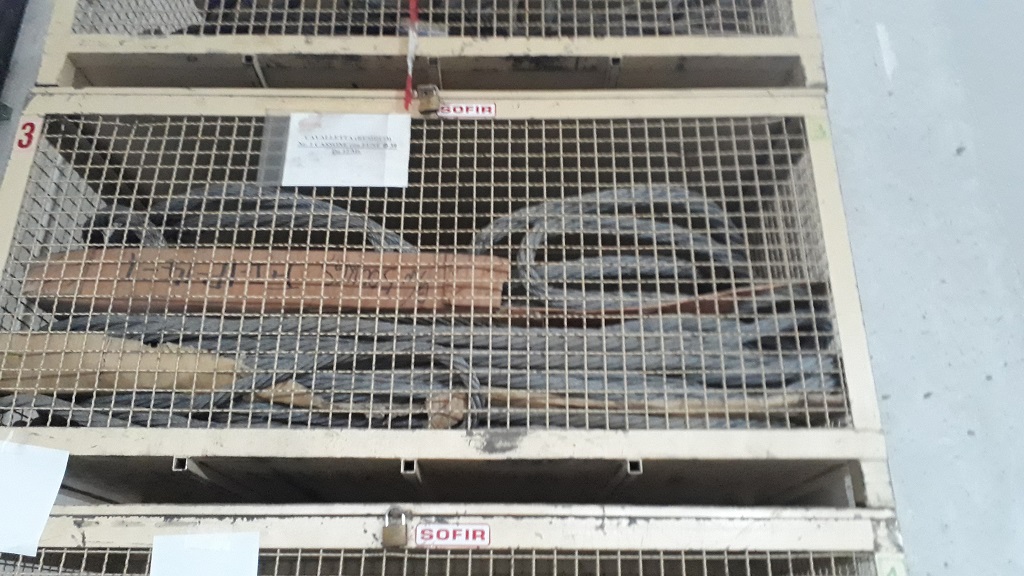

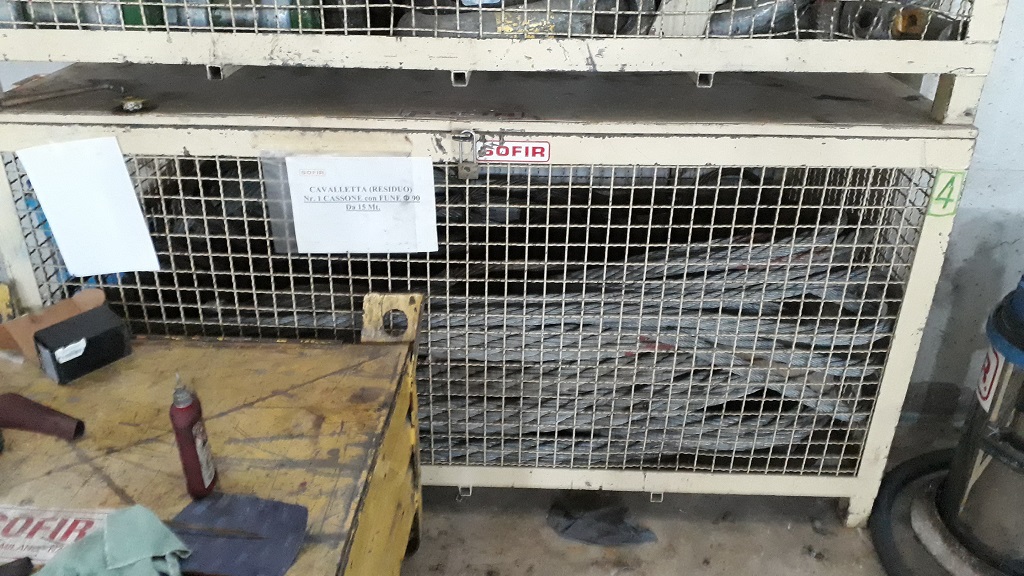

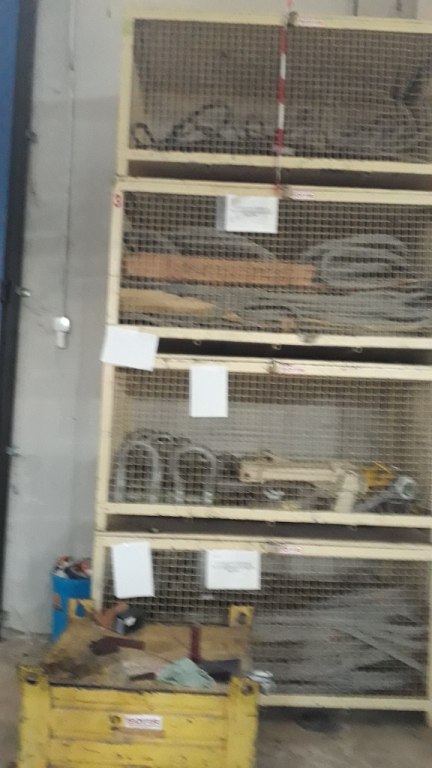

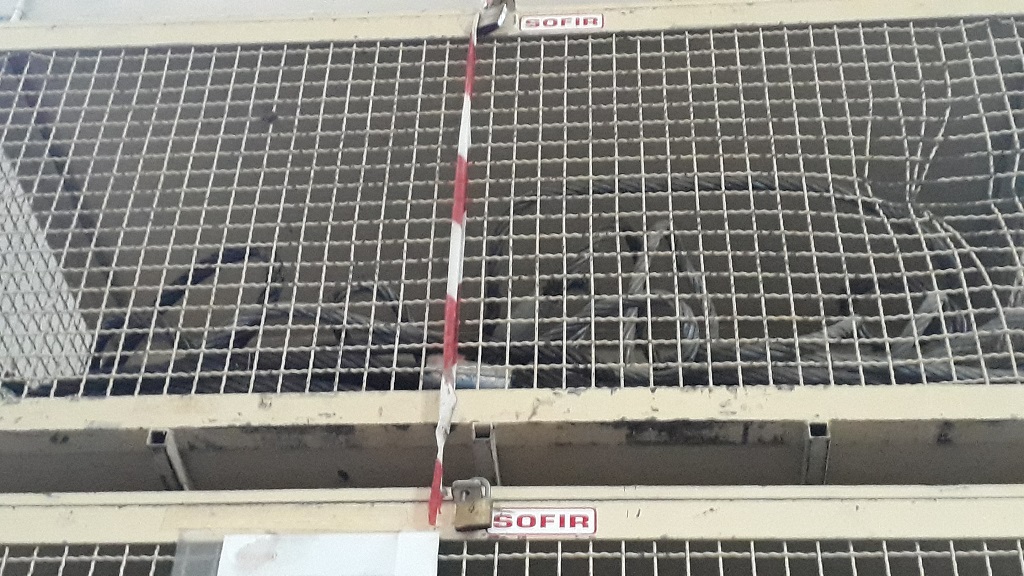

N. 4 Iron storage boxes Handles, steel cables, fixing brackets. Dim: 2000X1040X1000. Weight: 1 Ton. X 4 = 4 Ton

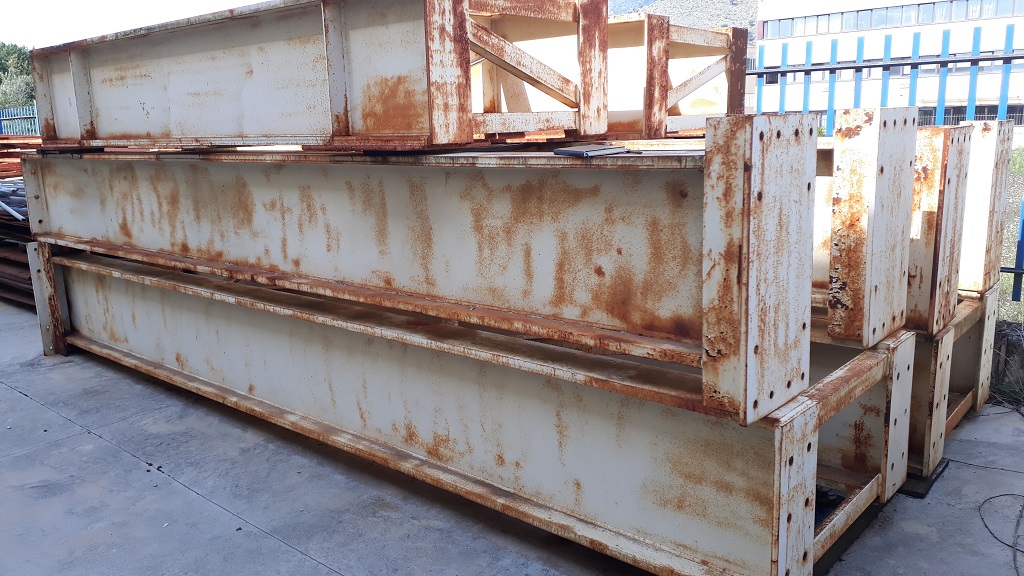

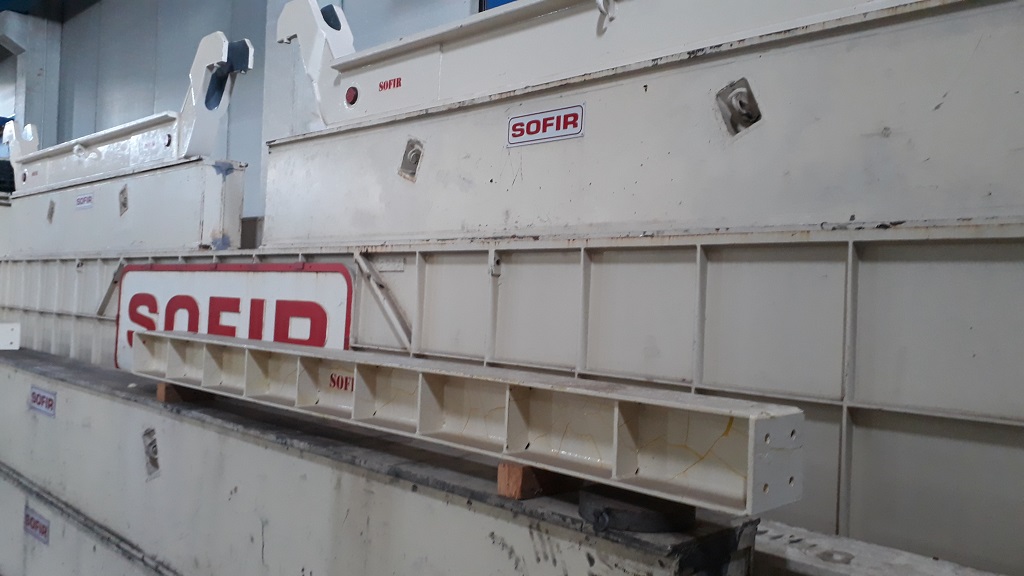

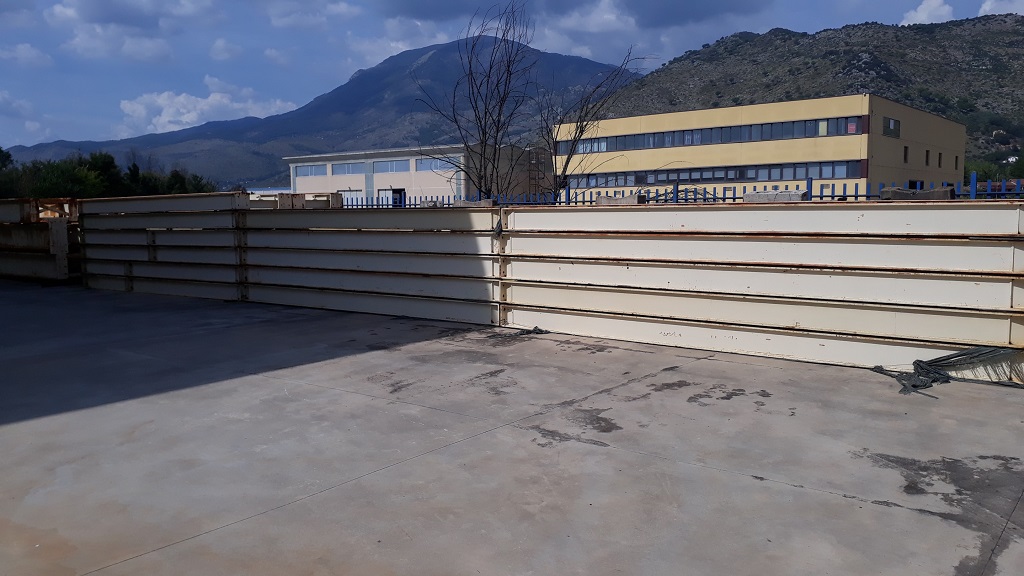

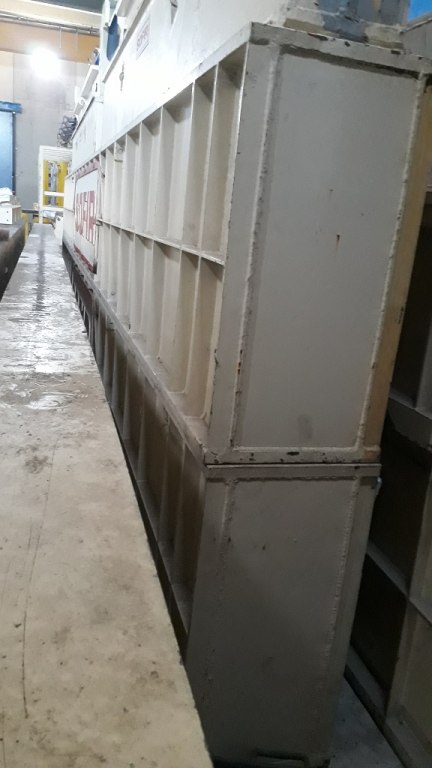

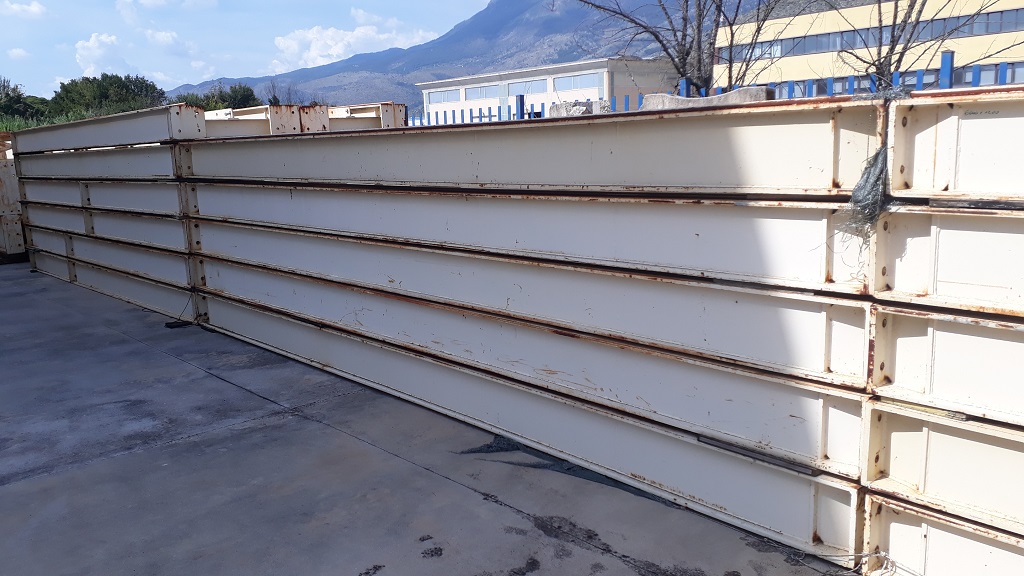

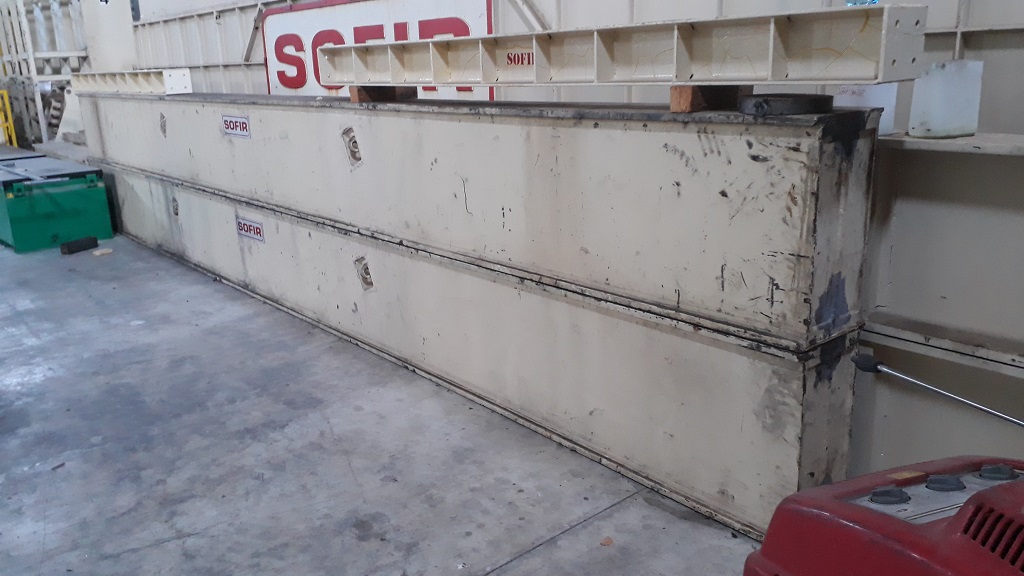

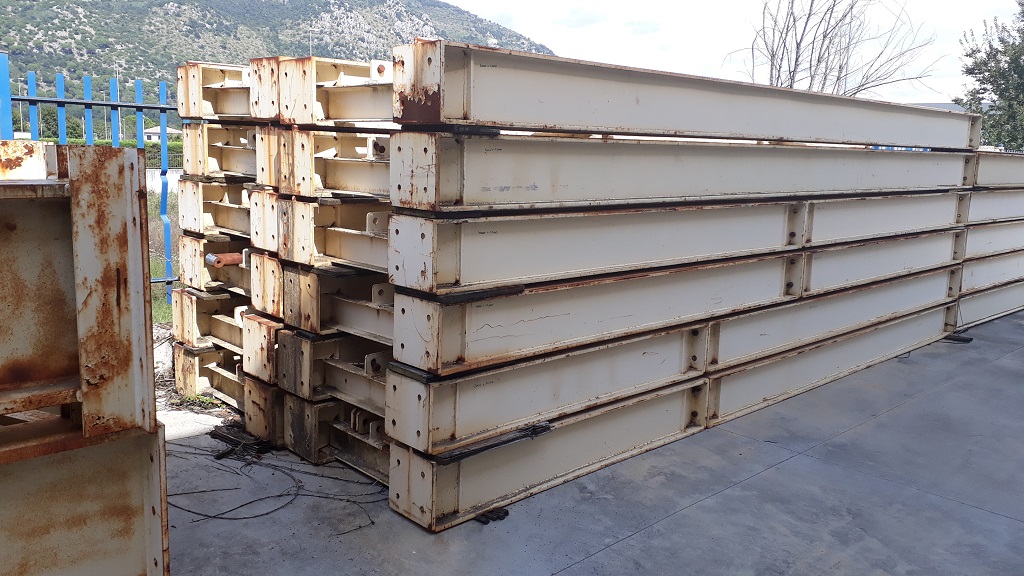

N. 2 13.5 meter lifting beams. Dim: 3.500X490X1.000. Weight: Kg 7.860 each
N. 2 12 meter lifting beams. Dim: 12.150x595X730. Weight: 11.855 kg each
N. 2 10 meter lifting beams. Dim: 9.900X490X1.000. Weight: Kg 4,800 each
N. 4 6 meter lifting beams. Dim: 6000X300X600. Weight: 2.100 kg each
N. 2 TRACKS Length 4 mt. Dim: 4 mt .. Weight: 1.465 Kg each
N. 4 TRACKS Length 3 mt. Dim: 3 mt..Peso: 1.114 Kg each
N. 2 TRACKS Length 2 mt. Dim: 2 mt .. Weight: 755 Kg each

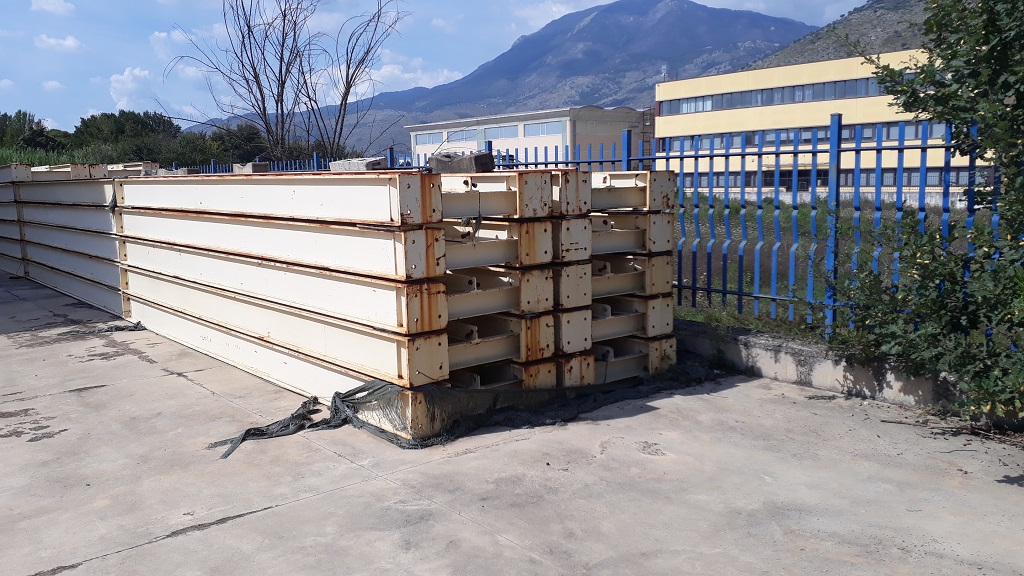

N. 28 TRACKS Length 6 mt. Dim: 6 mt .. Weight: 2.176 Kg each

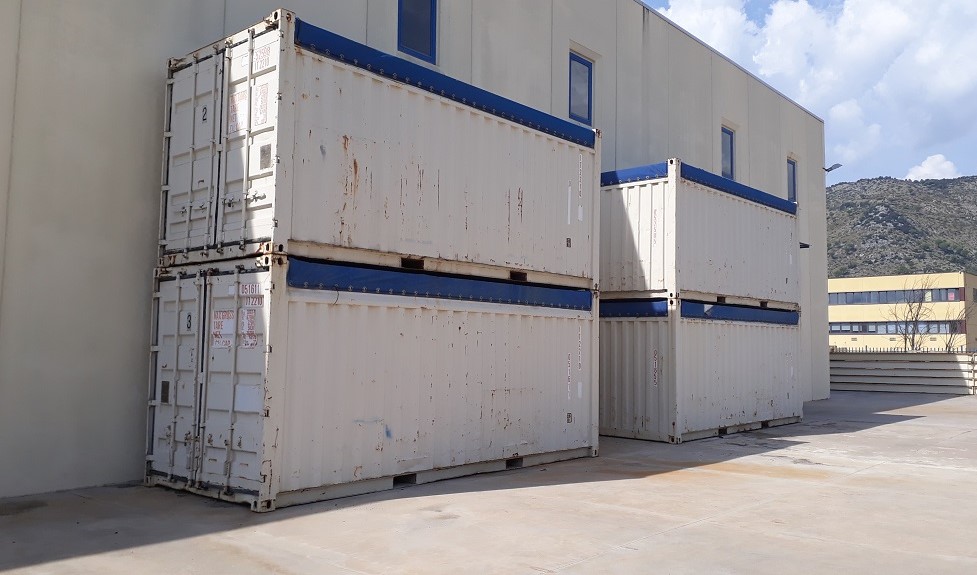

N. 4 Containers for grasshopper transport. Dim: Length outside: 6.060 mm Width external: 2.440 mm External height: 2.590 mm. Weight: 2.3 Ton. X 4 = 9.2 Ton - ref. C1

Annu: 2007

Marca: Lift System

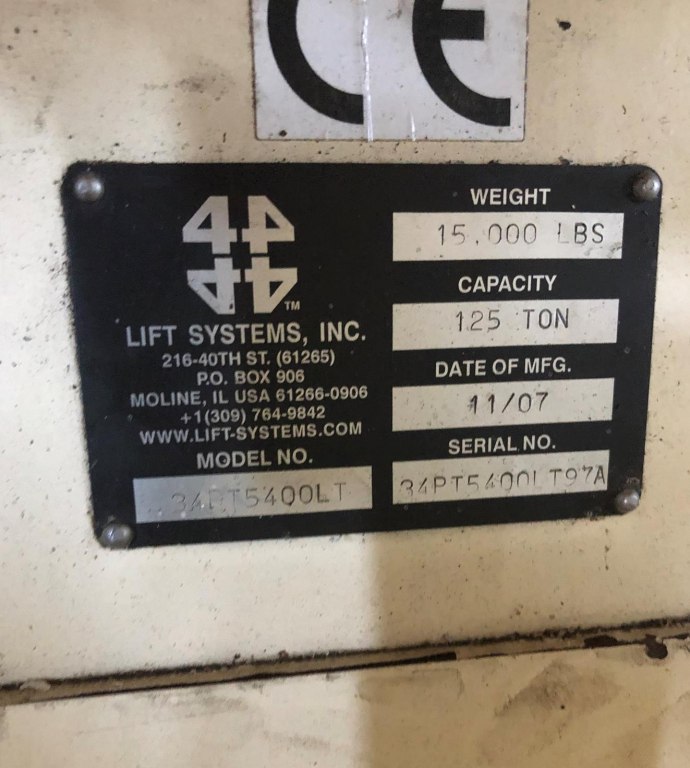

Matricola: 34PT5400LT
